Manual tablet press ch-0209
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

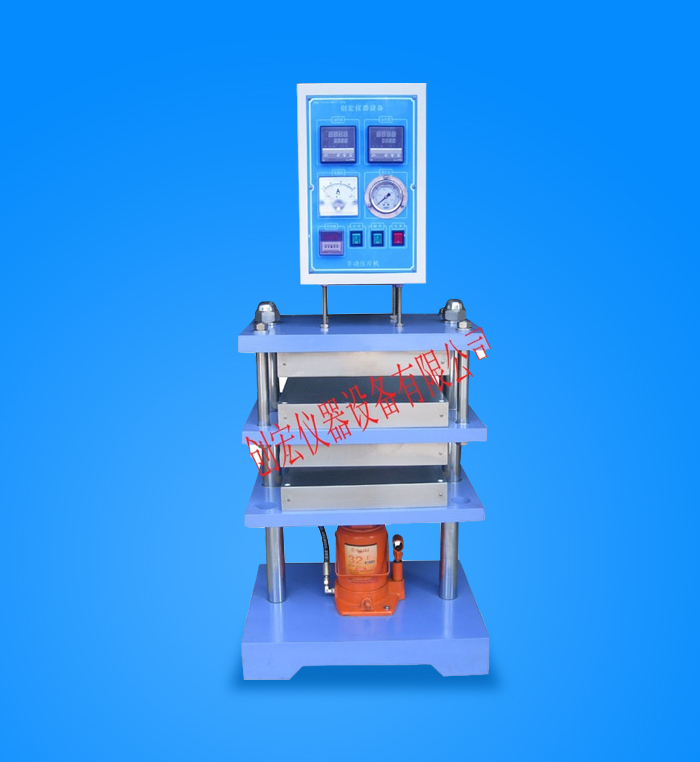

Manual tablet press ch-0209
Instructions of ch-0209 manual tablet press: applicable to rubber raw materials, pigments, grease and chemical raw materials, etc. Put the raw materials in the mold, and clip them between the heating plate of the machine.
Compared with automatic tablet press, manual tablet press is more convenient and has strong practical function.
The heating plate of manual vulcanizing machine is treated with alloy material to guarantee surface hardness. Both sides of the plate are ground with 0.8s to make the flatness between the two plates better.
The heated manual tablet press is powered by Taiwan cylinder, which can guarantee the steady pressure and reduce the failure rate of the machine. Reduce unnecessary troubles and maintenance costs. The heating die is designed by the professional manufacturer, and it can only be used after the professional development and verification of the heating precision and life of the die.
The oil cylinder, heating die, electrical, and parts are guaranteed for one year and the frame is guaranteed for three years.
Parameters of ch-0209 manual tablet press:
Capacity: 10, 20tom available
Temperature: room temperature - 300 ℃
Timer: LED 0--99min
Electric hot plate area: 220 x 220mm available
Heating method: electrical heating die
Temperature accuracy: plus or minus 3.5 ℃
Pressure control: hydraulic cylinder
Temperature display: LED display
Cooling method: optional (no, water cooling)
Board spacing: 0~180mm available
Volume (W x D x H) : 420 x 450 x 1200 mm
Weight: about 180kg
Power supply: 1 volt, AC220V, 20A
Item: tablet press; hand press; sulphur press; hand rubber press; mini-press; hydraulic cylinder press
