Melt index instrument CH-0137
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

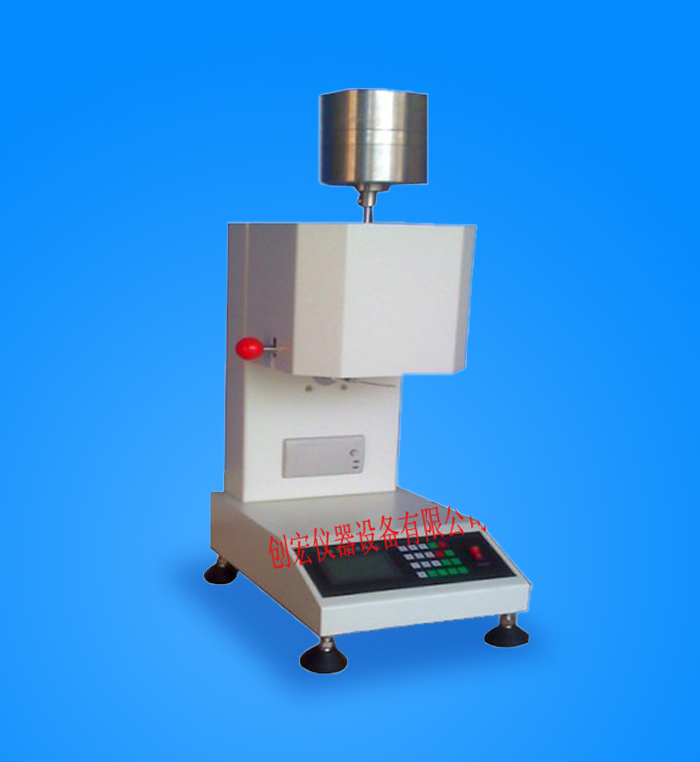

Melt index instrument CH-0137
Plastic, resin is used for mensurating melt flow rate when the viscous flow state MFR value, it applies to the polycarbonate, higher temperature of aromatic sulfone, fluorine plastic, nylon and other engineering plastics, can also be applied to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin with lower melting temperature, such as plastic test, widely used in plastic production, plastic products, such as petroleum and chemical industry and related colleges and universities, scientific research units, and the commodity inspection department.
Melt flow rate meter is applicable to the determination of the mass flow rate of thermoplastic melt and melt volume flow rate in GB/ t3682-2000 national standard. This standard is equivalent to the provisions of ISO 1133:1997 and can meet ASTM D1238 test standard.
Melt flow rate meter is of desktop structure, reasonable performance, stable and reliable design, beautiful appearance and convenient operation. It adopts high-performance, high-precision control instrument with high sampling precision and fast control rate, and USES fuzzy PID algorithm for constant temperature control.
Standard:
ISO 1133, ASTM D1238, GB/T3682
Product features:
The test parameters can be calibrated and corrected conveniently.
Technical parameters
1. Extrude the material part
Discharging mouth diameter: Φ 2.095 + / - 0.005 mm, discharging mouth length: 8.000 + / - 0.025 mm
Charging tube diameter: Φ 9.550 + / - 0.025 mm, charging barrel length: 152 + / - 0.1 mm
Piston rod head diameter: 9.475 + 0.015 mm, piston rod head length: 6.350 + 0.100 mm
2. Standard test load (a total of 8 sets of weights)
3, temperature range: normal room temperature, 400 ℃ 500 ℃ (optional)
4, the constant temperature precision: plus or minus 0.5 ℃
5, display resolution: 0.1 ℃
6. Cutting method: players can move or automatically cut
7. Temperature recovery time: less than 4 minutes
8. Printing: automatic printing output of micro printer
9. Power supply voltage: AC220V plus or minus 10% 50HZ
The serial number | The name says | Single bit | quantity | note |
1 | farmar | Set of | 1 | Total 8 pieces (1# in the KG of grade 1 load) : 0.325, 1.2, 2.16, 3.8, 5.0, 10.0, 12.5, 21.6 |
2 | Farmar tray | a | 1 | Within level 1 load |
3 | skip | a | 1 | |
4 | Loading rod | a | 1 | |
5 | The piston rod | a | 1 | Within level 1 load |
6 | Opening mould | a | 1 | |
7 | gauze | volume | 2 | |
8 | Die swab | a | 1 | |
9 | Barrel cleaning lever | a | 1 | assembly |
10 | level | a | 1 | |
11 | Printing paper | volume | 2 |
