Tablet press (automatic) ch-0201
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

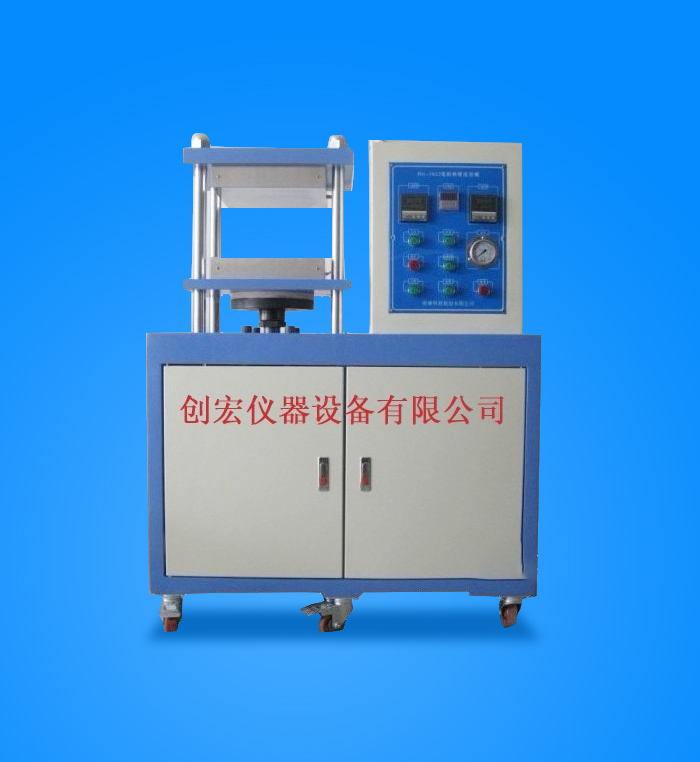

Tablet press (automatic) ch-0201
Ch-0201 tablet press is applicable to rubber raw materials, pigments, grease and chemical raw materials. Put the raw materials in the mold, and clip them between the heating plate of the machine.
The heating plate of automatic tablet press is treated with alloy material to guarantee the surface hardness. Both sides of the plate are ground with 0.8s to make the flatness between the two plates better.
The heated sheet press is powered by Taiwan cylinder, which can guarantee the steady pressure and reduce the failure rate of the machine. Reduce unnecessary troubles and maintenance costs. The heating die is designed by the professional manufacturer, and it can only be used after the professional development and verification of the heating precision and life of the die.
The oil cylinder, heating die, electrical, and parts are guaranteed for one year and the frame is guaranteed for three years.
The name of the | Small size press, test press, small size press, rubber vulcanizing press, plate vulcanizing press |
capacity | 10, 20, 30, 50, 100tom available |
The temperature | The normal temperature - 300 ℃ |
The timer | LED 0--99min |
Floor area | 300 x 300 mm can be ordered |
Heating mode | Electric heating die, oil heating |
The temperature precision | ±2℃ 、±1℃ |
Pressure control | Hydraulic controller refreshment |
Temperature display | PID control |
Plate spacing | Available 0 ~ 80 mm |
The cooling system | Fully enclosed single-stage compressor |
Cooling way | Water cooling, oil cooling circulation (optional) |
Volume (W * D * H) | 1000×700×1500 mm |
The weight of the | About 820 kg |
The power supply | 3∮, AC380V，20A |
