Program control tablet press ch-0210
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

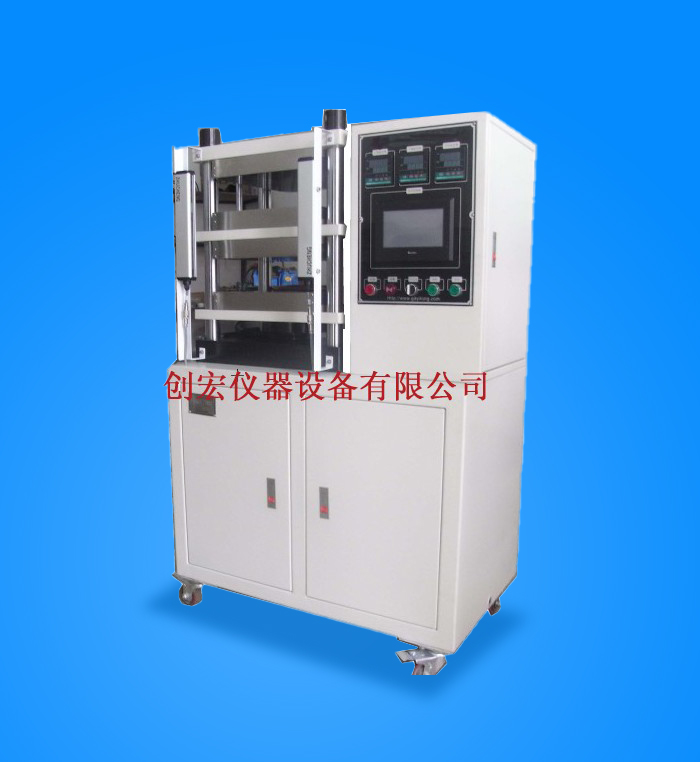

Program control tablet press ch-0210
Suitable for rubber raw materials, pigment, oil, chemical raw materials and so on. Put the raw materials in the mold, and clip them between the heating plate of the machine.
The heating plate of automatic vulcanizing machine is treated with alloy material to guarantee surface hardness. Both sides of the plate are ground with 0.8s to make the flatness between the two plates better.
The heating type vulcanizing machine adopts Taiwan oil cylinder as the power, which ensures the steady pressure during operation and greatly reduces the failure rate of the machine. Reduce unnecessary troubles and maintenance costs. The heating die is designed by the professional manufacturer, and it can only be used after the professional development and verification of the heating precision and life of the die.
The oil cylinder, heating die, electrical, and parts are guaranteed for one year and the frame is guaranteed for three years.
Programmed cooling tablet press:
It has two functions: rapid cooling and programmed cooling
steps
Contact preheating and non-contact preheating are optional
Powerful TAB process time node setting
Double and triple pressure control is optional
The name of the | Pressing machine, vulcanizing machine, plate vulcanizing machine, rubber vulcanizing machine, plastic vulcanizing machine, sulfur |
capacity | 10, 20, 30, 50, 100tom available |
The temperature | The normal temperature - 300 ℃ |
The timer | LED 0--99min |
Area of hot plate | 300×300 mm、350×350 mm、400×400 mm available |
Area of refrigerating panel | 300 x 300 mm, 350 x 350 mm, 400 x 400 mm available |
Heating mode | Electric heating die, oil heating |
The temperature precision | ±3.5℃ / ±1℃ |
Pressure control | Double and triple pressure control is optional |
Temperature display | LED display/PLC/man-machine interface |
Plate spacing | Available 0 ~ 80 mm |
The cooling system | Fully enclosed single-stage compressor |
Cooling way | Water cooling, oil cooling circulation |
Volume (W * D * H) | 1100×700×1500 mm |
The weight of the | About 1080 kg |
The power supply | 3∮, AC380V，20A |
