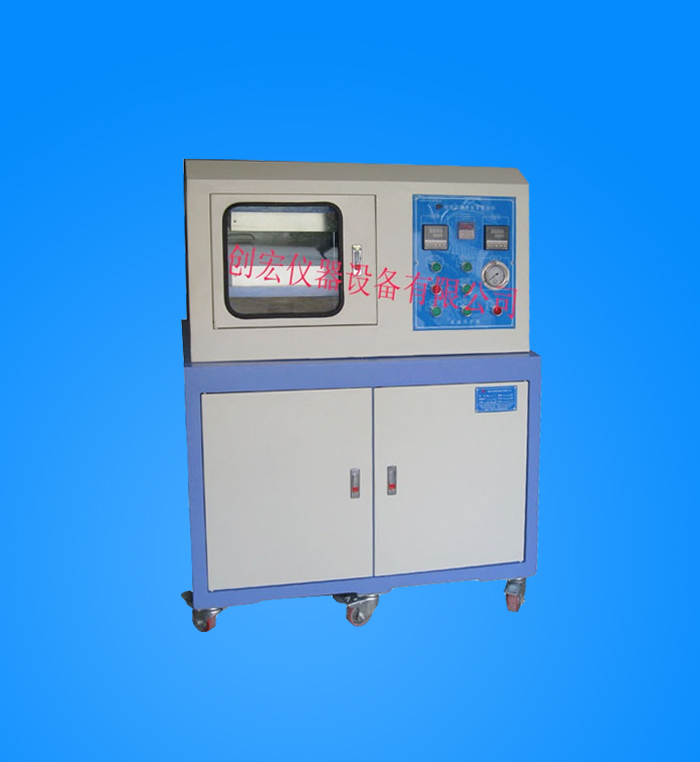

Laminator (single-layer) ch-0202
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx
Shaper (single layer) ch-0202 ch-0202 (plate vulcanizing machine) applicable rubber raw materials, pigments, oil mo, chemical raw materials. Put the raw materials in the mold, and clip them between the heating plate of the machine.
The heating plate of electric heater is treated with alloy material to guarantee the surface hardness. Both sides of the plate are ground with 0.8s to make the flatness between the two plates better.
The platen press used in the test is powered by Taiwan cylinder, which can guarantee the steady pressure and reduce the failure rate of the machine. Reduce unnecessary troubles and maintenance costs. The heating die is designed by the professional manufacturer, and it can only be used after the professional development and verification of the heating precision and life of the die.
Heating type sulfur cargo oil cylinder, heating mold, electrical, and various parts are guaranteed for one year, and the frame is guaranteed for three years.
The name of the | Small press, test press, small press, rubber vulcanizing machine, flat press, automatic press |
capacity | 10, 20, 30, 50, 100tom available |
The temperature | The normal temperature - 300 ℃ |
The timer | LED 0--99min |
Area of hot plate | 400 x 400 mm can be ordered |
Heating mode | Electric heating die, oil heating |
The temperature precision | ±2℃ 、±1℃ |
Pressure control | Hydraulic controller refreshment |
Temperature display | LED control display |
Plate spacing | Available 0 ~ 180 mm |
The cooling system | Fully enclosed single-stage compressor |
Cooling way | Water cooling, oil cooling circulation (optional) |
Volume (W * D * H) | 1000×700×1500 mm |
The weight of the | About 820 kg |
The power supply | 3∮, AC380V，20A |
