Two - roll calender CH-0107
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

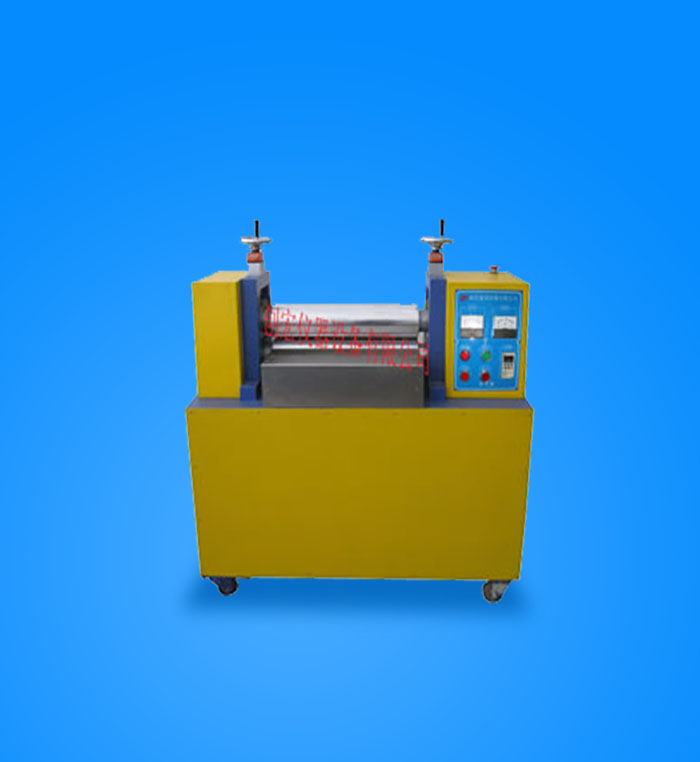

Two - roll calender CH-0107
The ch-0107 rolling machine is suitable for large plastic products, large pipes, plates and rubber top materials production line pressure sheet; This series of products all steel welding, solid structure, reasonable design, small footprint; Easy operation, safety, large shear force, high production efficiency.
Ch-0107b cold tying machine: suitable for metal sheet production; The roller adopts bearing steel to obtain absolute hardness, which is suitable for metal cold-tying pressure sheet.
Machine roll number | Two high, |
Roller of calender | 4", 5", 6", 7", 8", 10" x 500mm |
Adjust the spacing | 0 ~ 10 mm accuracy (0.1) |
Cooling way | Water is cooled or heated |
Speed ratio | 1：1 |
Calender speed | Speed adjustment by frequency modulator is 0~36rpm |
The roller way | Two rolls up and down |
Main motor power | 2.2KW |
The weight of the | About 650 kg |
volume | 1300×650×1500 mm |
The power supply | 3∮, AC380V |
Rolling: molding of thermoplastic by a series of heated rollers that are then joined to a film or sheet by extrusion and elongation. Pressing products are film, sheet, artificial leather and other coated products. The raw materials used in rolling molding are mainly PVC, cellulose, modified polystyrene and so on.
Calendering equipment includes calendering machine and other auxiliary machines. Calenders are usually classified by the number of rollers and their arrangement. According to the number of rollers, calendering machine has two, three, four, five, even six roll, three or four calendering machine used the most.
