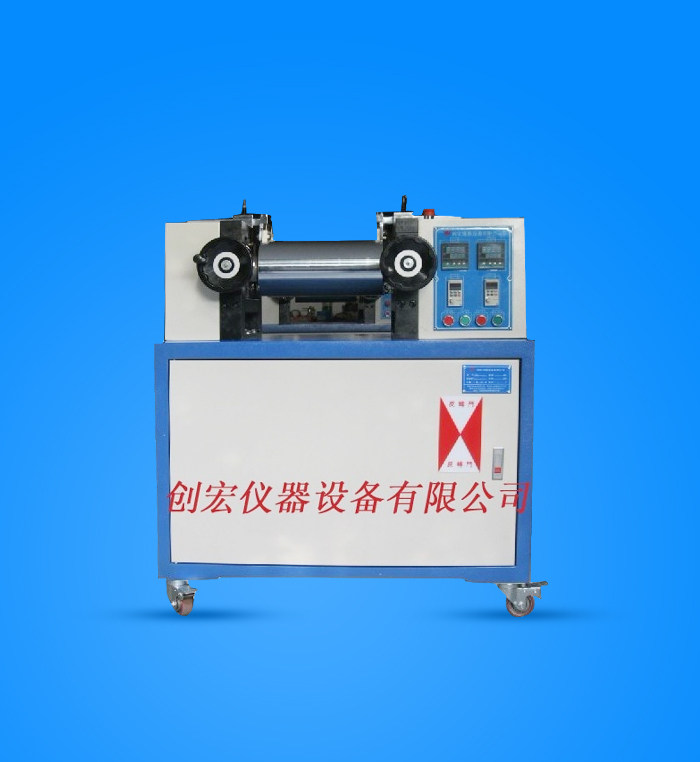

Rubber mixer ch-0109
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx
This machine is suitable for the development and mixing of natural rubber and synthetic rubber in the laboratory. This machine can also be used for small production and high cost performance.
Features description:
This machine is based on the Suggestions and opinions of European imported models and the majority of customers on domestic production machines. The overall design is reasonable. Compact and light, solid. Accurate control, safe and reliable.
This model has powerful functions and can be made into multi-purpose model, which can not only satisfy the opening of rubber, but also be used to refine plastics. Customers according to their own requirements to buy room temperature, thermal oil cooling type, electric cooling type.
The double rolls are made of forged Cr steel, vacuum quenching of the roller surface, high precision chrome-plating process and mirror polishing at the same time, making the surface of the roller reach hrc55-60. After tempering and tempering, the shaft shoulder can eliminate the stress of the material and greatly improve the impact and friction resistance of the roller.
The lubrication system adopts mobil XHP and high strength grease to ensure good lubrication effect, no leakage and insoluble under high temperature and high load. Non-carbonized, and easy to add grease.
The gap adjustment of double roll adopts advanced linkage distance adjustment device, which can ensure that the distance between two rolls is always consistent from left to right. Manual adjustment and automatic adjustment are available. Spacing LED display. Accurate and intuitive.
The safety device has multiple stopping or reversing contacts and is equipped with a protective cover to ensure the safety of operators to the maximum extent.
In addition, we can also adapt or add other functions according to the needs of different customers. Welcome to call for advice.
| Mixing capacity | 0.2-1.5kg |
| Roller temperature | Adjustable temperature to 200 ℃ (the cooling temperature system) customer specified |
| Heating up time | About 35 min at room temperature to 150 ℃ |
| The temperature precision | ±1℃ |
| Roller specification | Φ150*L350 |
| Roller revolution | 36r/min |
| Roller speed ratio | 1:1.25 |
| Roller spacing | 0.1 to 5 mm is adjustable |
| Safety device | Emergency stop cover when knee touch the reversing lever |
| The volume of the machine | 100*50*90cm |
| The machine weight | About 450 kg |
| Electrical source | 3∮，AC380 12A |
