Oil heating mixer ch-0108

Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

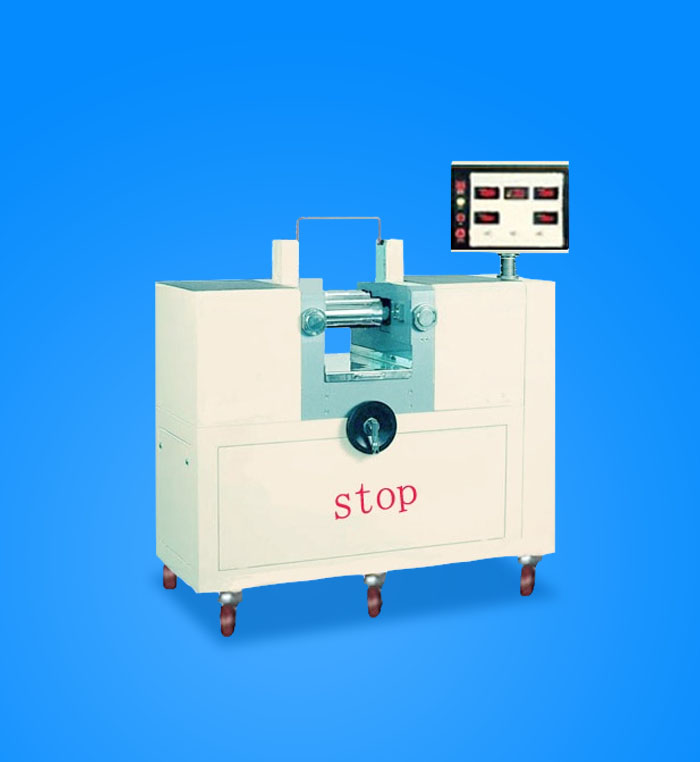

Oil heating mixer ch-0108

Oil heating mill is suitable for mixing and processing of chemical raw materials such as PVC and chromoplast in rubber industry. In this way, the raw material and the coordination agent can be mixed evenly, and the required color and quality can be achieved. The machine adopts special heating die, the surface temperature of the roller is uniform, never layer off, the thickness of the test material can be adjusted with the safety protection device of the machine, it is light and easy to use.

Features of oil heating mill: it can effectively keep the temperature of the drum at a constant temperature to reach a higher temperature accuracy.

Details:

Mixing capacity of oil heating mixer: 1-2kg

Oil heating mixing mill roller temperature: 300 ℃

Cylinder size of oil heating mill: 120 x L350mm or customized

Drum spacing of oil heating mixer: 0 ~ 5mm or wider adjustable

Safety device for oil heating mill: emergency stop or reverse

The heating method of oil heating mill: heat conduction oil heating

Drum speed of oil heating mill: 0-40 monotonic 0-30 constant speed 18-24r/min

Cylinder speed ratio of oil heating mixer: 1:1.25 or finger

Motor for oil heating mill: 2HP*1 or practical match

Volume of oil heating mill (W x D x H) : 1000 x 500 x 1400 mm &900 x 500 x 1300 mm

Weight of oil heating mill: about 350kg

Power supply of oil heating mixer: 3 less, AC380V, 20A

Instructions of mixer:

1. Classification of mixer: dual FM mixer according to variable speed, single FM mixer and constant speed mixer.

2. According to the heating method, it is divided into oil heating mixer and electric heating mixer.

3. The size and size of the cylinder of the mill can be selected according to the test dosage.

4. The temperature of the mixer is different from the melting point of the material and the modified temperature. The temperature can be adjusted according to the need.

5. The specific speed of the mixer is 1:1.25. According to material shear property, custom-made.

6. Set the specific speed of the roller randomly in the double-fm mixer. Convenient operation when mixing different materials.

Roller hardness: the commonly used type of roller has a hardness of 55~60HRC. According to the material requirements,

The roller made of special material can reach the hardness of HV2300(about 80~100HRC).

Name: oil heating mill, rubber mill, rubber mill, mixing mill L350mm or order
