3-roll calender ch-0106
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

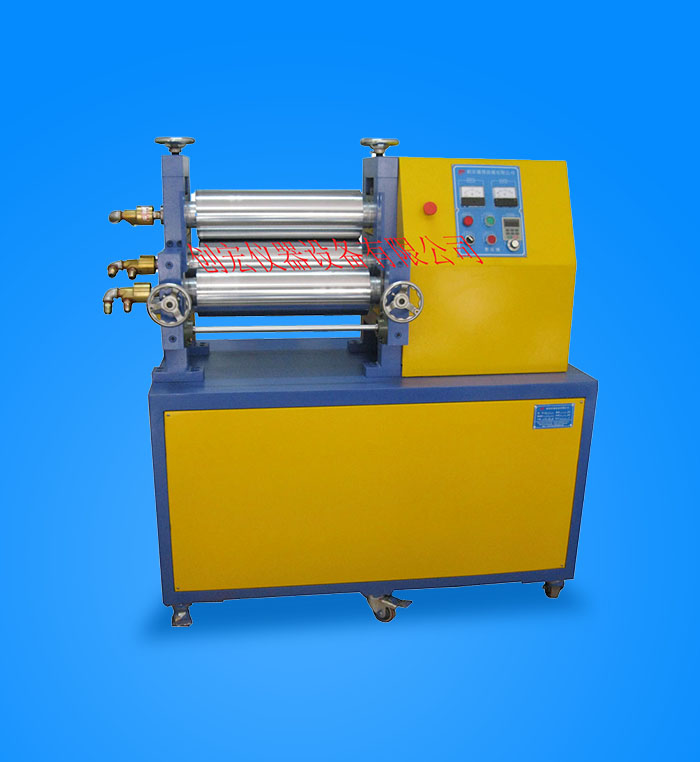

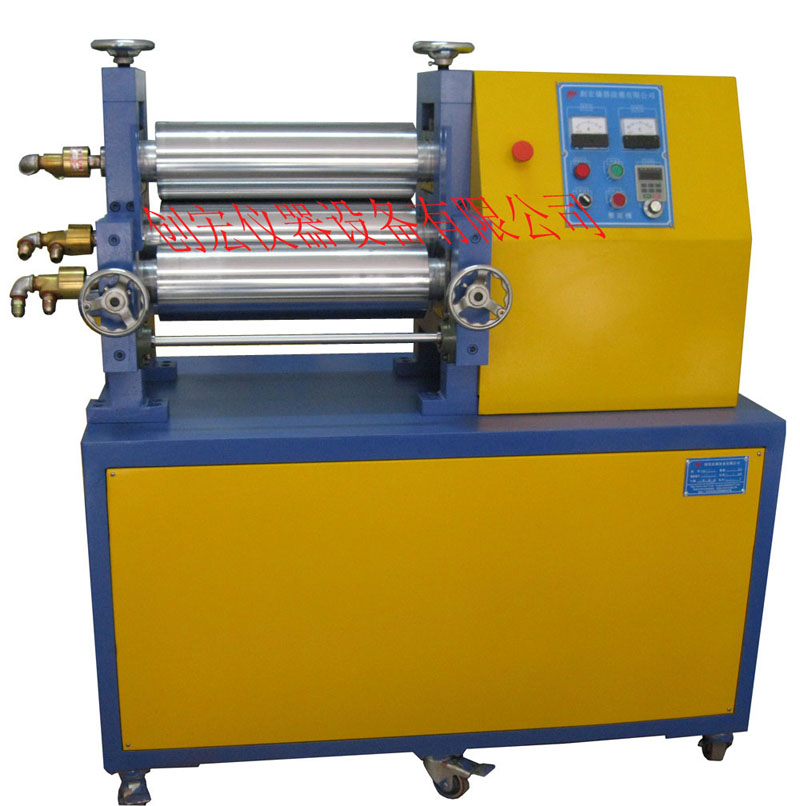

3-roll calender ch-0106
The ch-0106 rolling machine is suitable for the production of pressure sheets in the assembly line of large plastic products, large pipes, plates and rubber top materials. This series of products all steel welding, solid structure, reasonable design, small footprint; Easy operation, safety, large shear force, high production efficiency.
Machine roll number | Three, four, five |
Roller of calender | 4", 5", 6", 7", 8", 10" x 500mm |
Adjust the spacing | 0 ~ 10 mm accuracy (0.1) |
Cooling way | Water is cooled or heated |
Speed ratio | 1：1.1:1.1 |
Calender speed | Speed adjustment by frequency modulator is 0~36rpm |
The roller way | Three roller type arrangement |
Main motor power | 5.5KW |
The weight of the | About 850 kg |
volume | 1300×650×1500 mm |
The power supply | 3∮, AC380V |
