Mixing mill CH - 0105

Release time：2018-11-06 source：http://www.cho17.com author：lx

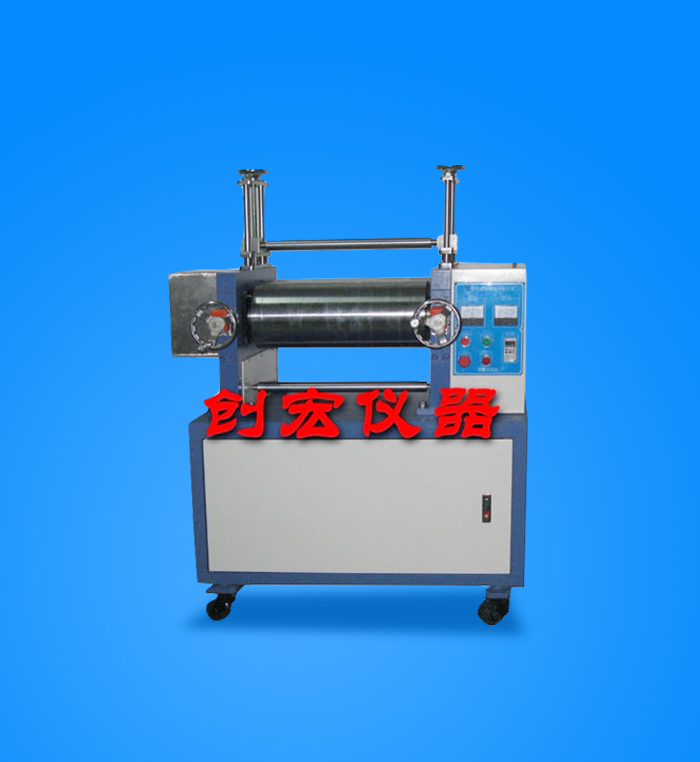

Mixing mill CH - 0105

This machine is suitable for mixing and processing of chemical raw materials such as PVC and chromoplast in rubber industry. In this way, the raw material and the coordination agent can be mixed evenly, and the required color and quality can be achieved. The machine adopts special heating die, the surface temperature of the roller is uniform, never layer off, the thickness of the test material can be adjusted with the safety protection device of the machine, it is light and easy to use.

1. Bearing of mixer: imported cylindrical aligning bearing, which bears large load, can adjust clearance, high precision and good rigidity.

2. Cylinder of the mixer: it is made of high temperature resistant material and its surface is treated by deep carbonized hard surface and hard chrome plating, which has the features of fast heat transfer, corrosion resistance, high hardness and no deformation.

3. Tempering bar of mixer: rotary thermocouple, sensitive to temperature measurement, uniform and high accuracy.

4. Heating device of mixer: rotary electric heating die heater with high power, fast heating and strong durability.

5. Drive system of mixer: adopt Taiwan speed reduction motor, match gears, sprocket and chain, operate smoothly, accurately and without dryness.

6. Safety protection of the mill: emergency protection device is attached, which can stop or reverse the machine in case of emergency.

7. One-year warranty for roller, heating die, motor and electric appliance, and three-year warranty for rack.
