Programmable constant temperature and humidity tester CH-0505
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

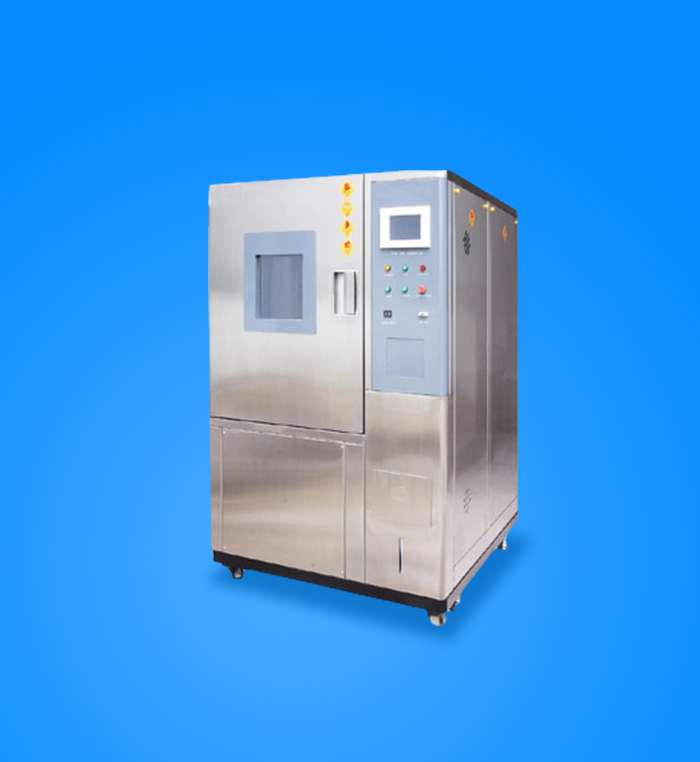

Programmable constant temperature and humidity tester CH-0505
Ch-0505 programmable constant temperature and humidity tester description: this machine is used to test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. Suitable for plastic products, electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and other factory quality control use.
The name says | Quality programmable constant temperature and humidity test machine, constant temperature and humidity test box, constant temperature and humidity test machine, constant temperature and humidity test, constant temperature and humidity test |
system | Adjustable temperature and humidity control system |
Temperature range | -40℃~+100℃，+150℃ optional |
| Humidity range | 10~98%R.H |
| The temperature precision | ±0.3 ℃ |
| Accuracy of humidity | ±2.5%R.H |
| Temperature uniformity | ±0.7 ℃ |
| Uniformity of humidity distribution | ±3% |
| Heating up time | - 40 ℃ ~ + 100 ℃ about 45 min |
| Cooling time | +20℃~-40℃ about 约90min |
| Inside the box size | 500×500×600mm |
| In the cases of material | Stainless steel 304 |
| Heat preservation material | Hard foam and glass wool |
| Refrigeration system | Fully enclosed (French taikang or German wheel) compressor |
| To protect the system | Overtemperature protection switch, fuse, water shortage protection switch, electromagnetic protection switch, fault warning system |
The weight of the | about 300kg |
The power supply | 3∮,AC380V，60Hz |
