UV - resistant yellow light box CH-0115
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

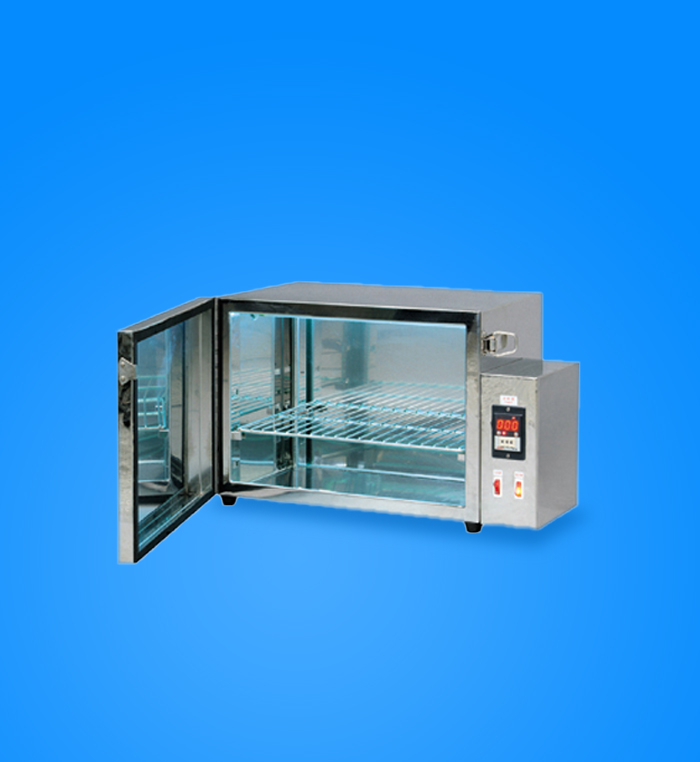

UV - resistant yellow light box CH-0115
Ch-0115uv yellow resistance lamp box is specially designed to measure the yellow resistance degree of various materials (leather, cloth, paint, rubber, plastic, etc.) to light irradiation. UV - type with ultraviolet light source, irradiate the test sample, test the resistance to yellow.
The yellow resistance test was conducted using A standard wavelength tube, with c medium wave ultraviolet (uv-b), 290--320nm d long wave ultraviolet (uv-a), and 320--400nm. E Visible light has a wavelength of 400--760nm. Various manufacturers of uv lamp: philips uv lamp, aurang uv lamp.
Specially designed box can adjust the distance of material from the lamp tube according to the standard specification, effectively test the product's yellowing effect, use the product's better quality, so as to obtain a larger market range.
Philips lamp guarantees 5000 hours of normal use, domestic lamp guarantees 1000 hours of use, electrical equipment guarantees 1 year, machine case guarantees 3 years.
The name of the | UV resistance to yellow light box, UV light box, yellow light box, UV resistance to yellow test |
Use the light source | Ultraviolet lamp tube 15W x 2 |
Irradiation distance | 0 ~ 30cm with an adjustable range of 18 ~ 30cm |
The timer | LCD ， 0 ～ 3hr |
Inner box (W * D * H) | 500×300× 400mm |
Volume (W * D * H) | 610×340× 410mm |
The weight of the | about 25kg |
The power supply | 1∮, AC220V，1.5A |
