Small mixer ch-0301
Release time：2018-11-06 source：http://www.cho17.com/english/ author：lx

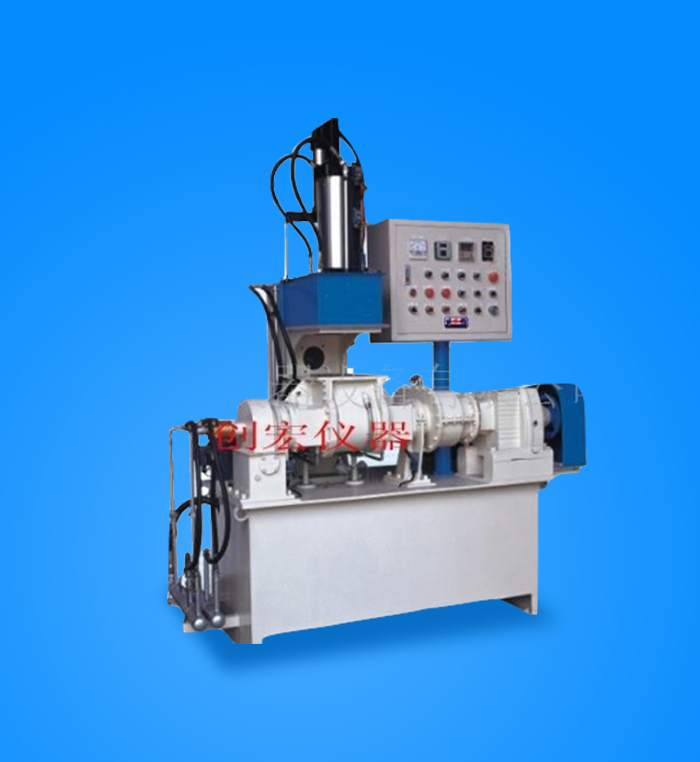

Small mixer ch-0301
The ch-0301 mixer is suitable for mixing, kneading and dispersing EVA, rubber, synthetic glue, hot melt glue and other chemical raw materials.
The small mixer was originally designed on table bend, used for sealing and mixing in the box of plastic, EVA, rubber, synthetic rubber and hot melt adhesive.
The small mixer is divided into the mixing chamber electric heating, water (oil heating), water cooling. Follow the material requirements to set up the assembly.
The inner wall is welded by hard chromium plating and alloy steel, which has good wear resistance and longer service life. Rotor speed can be adjusted as required.
The rotor, motor, reducer and cylinder of this machine are guaranteed for one year and the frame is guaranteed for three years.
The name of the | High quality mini mixer, high quality mixer, mini mixer, experimental mill, mill and kneading machine |
Mixing capacity | 3 l or specify |
Rotation speed (front: rear) | 30:24.5 |
Flip Angle | 140° |
Working pressure (Kg/Km2) | 10 |
Volume (W * D * H) | 1500×800×2100 mm |
The weight of the | about 850kg |
The power supply | 3∮, AC380V，20A |
